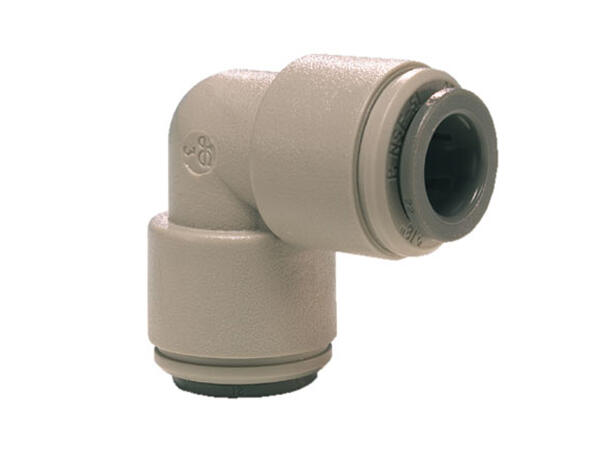

Snabbkoppling 90-grader hona till hona 3/8"

Snabbkoppling 90° 3/8" hona tilll hona

John Guest

Artikelnummer: 100095
Snabbkoppling 90-grader hona till hona 3/8" - Slangar och kopplingar - Tillbehör för bryggutrustning.
49 SEK
-+
8i lager
BeskrivningTeknisk infoAlternativSupportRecensioner
Beskrivning
Snabbkoppling 90-grader hona till hona 3/8".


Generell produktinformation från tillverkaren:

Working Pressure and Temperature Range

Super Speedfit fittings are suitable for the following pressures and temperatures.

Temp.

Pressure
Air  5/32" – 5/16"
4mm – 8mm
 3/8"- 1/2"
10mm – 22mm
-20°C  16 Bar

 10 Bar

Potable Liquids and Air
   +1°C  16 Bar  10 Bar
 +20°C  16 Bar  10 Bar
 +65°C  10 Bar   7 Bar



Tube Tolerances

Super Speedfit fittings are offered for tubes with outside diameters to the following tolerances.

Size (inches)

 5/32" – 3/16"

 1/4" – 1/2"

Tolerance (inches)

+0.001 / -0.003

+0.001 / -0.004

Size (mm)

4mm – 5mm

 6mm – 22mm

Tolerance (mm)

+0.05 / -0.07

+0.05 / -0.10



Maximum Torque Values for Plastic Threads BSP, BSPT & NPT.

Plastic threads are not generally as strong as brass threads. Customers and end users should be aware of this when choosing products for their applications. Over-tightening of plastic threads will cause undue stress and eventual cracking and leakage. The maximum torque figures for BSP and BSPT threads used in John Guest fittings in mating threads conforming to the relevant BS or International thread standards.
